Engineered to Fly.
Built for Your Mission.
Explore custom-built FPV drones, autonomous UAV platforms, aerial surveillance systems and specialized drone solutions designed around your operational requirements.
Find the right platform
for your application.
Browse our drone systems by size, capability and intended application. Specifications may vary with configuration, payload and operating conditions.
FPV Drones
Compact agility, freestyle performance and extended-range configurations.

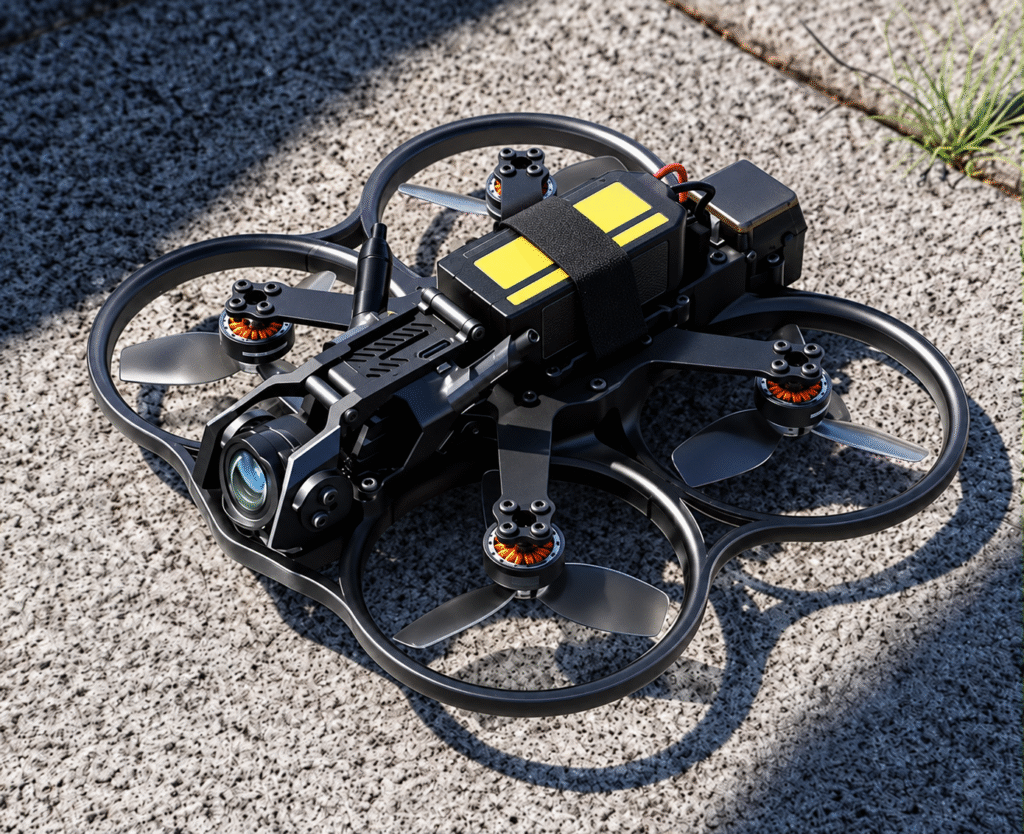

FPV / 01
2.5 Inch FPV
Compact FPV platform for indoor training, technical flying and lightweight freestyle.
- Motors
- 4,300–5,500 KV (4S)
- ESC
- 20–35A
- Battery
- 4S 650–1,100 mAh
- Video
- Analog / Digital
- Weight
- ~100–180 g
- Flight time
- ~3–7 min

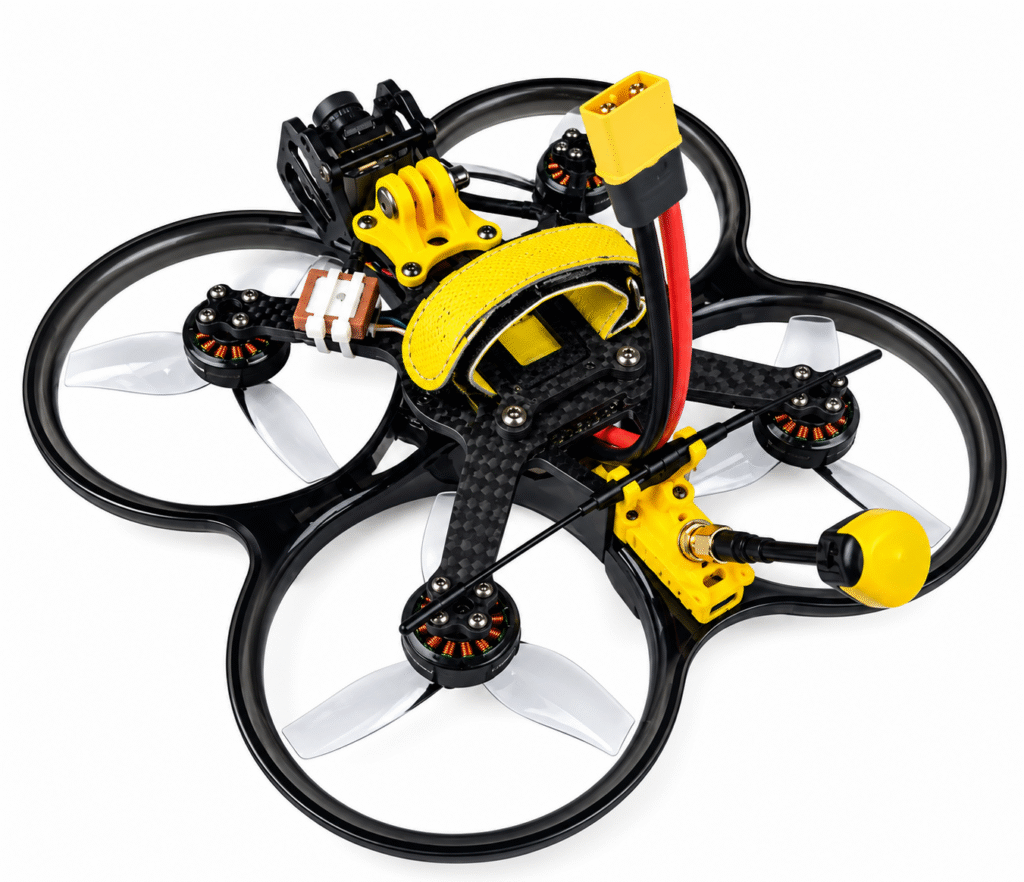

FPV / 02
3.5 Inch FPV
A balanced platform for freestyle flying, cinematic footage and outdoor cruising.
- Motors
- 1806–2006, 2,500–3,500 KV (4S)
- ESC
- 35–50A
- Battery
- 4S/6S 900–1,500 mAh
- Video
- Quality analog / digital
- Weight
- ~150–250 g
- Flight time
- ~4–10 min

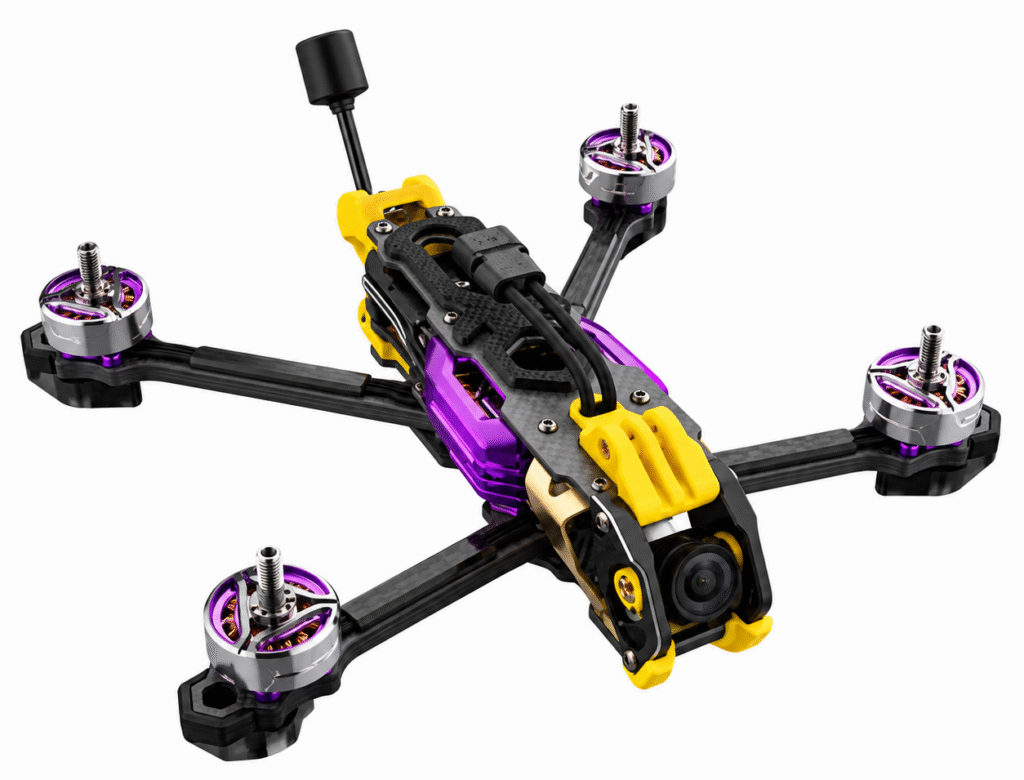

FPV / 03
5 Inch FPV
A high-performance FPV configuration for outdoor flying, freestyle and cinematic use.
- Motors
- 2207–2306.5
- KV
- 1,500–2,000 KV (6S)
- ESC
- 45–65A
- Battery
- 4S/6S 1,100–1,800 mAh
- Video
- Premium analog / digital
- Flight time
- ~3–8 min

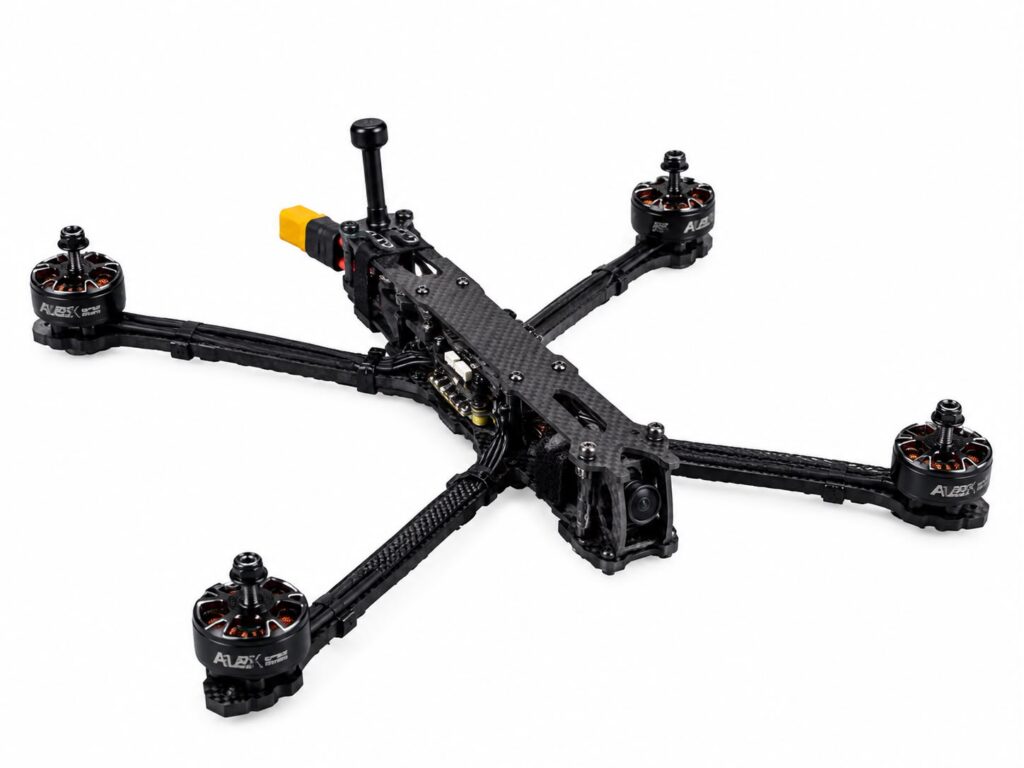

FPV / 04
7 Inch FPV
Designed for long-range exploration, efficient cruising and cinematic flights.
- Motors
- 2806–2808
- KV
- 1,200–1,700 KV (6S)
- ESC
- 45–60A
- Battery
- 6S 2,000–4,000 mAh
- Video
- Long-range analog / digital
- GPS
- Recommended
- Flight time
- ~8–18 min

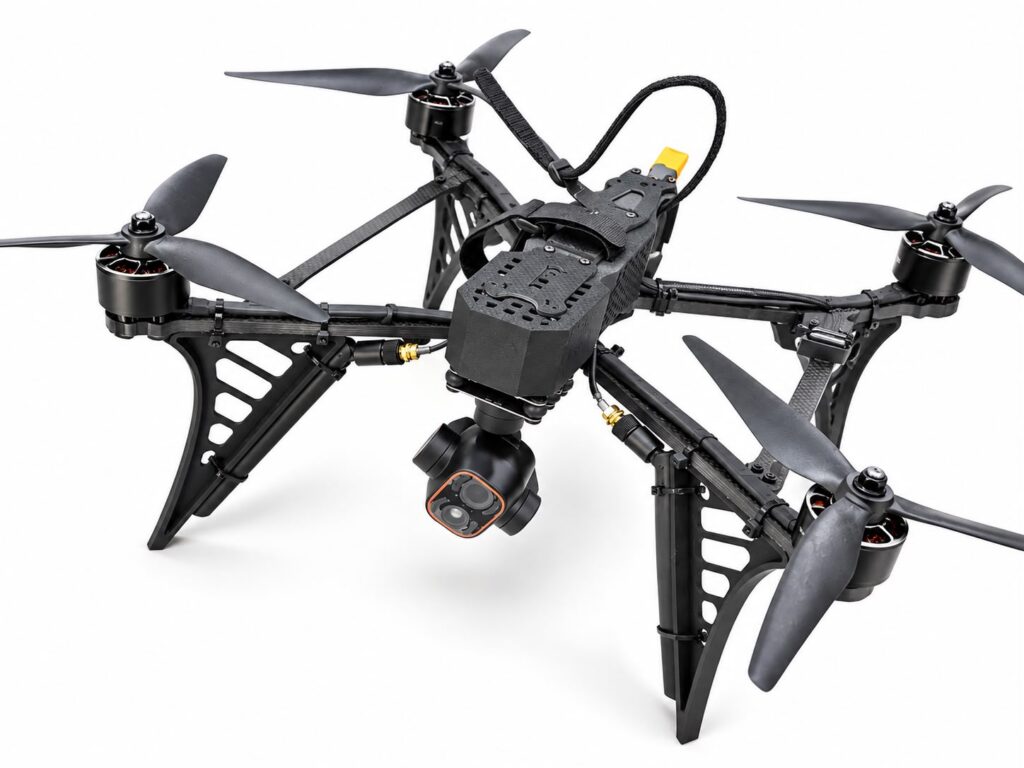

FPV / 05
10 Inch FPV
An extended-range platform with optional thermal camera and optical-fibre spool configurations.
- Motors
- 3115–4006
- KV
- 700–1,100 KV (6S)
- ESC
- 60–80A
- Battery
- 6S 4,000–8,000 mAh*
- Video
- Long-range analog / digital
- GPS
- Recommended
- Flight time
- ~15–30+ min
*Flight time and performance figures are approximate and depend on battery, payload, weather, flight profile and final configuration.
Purpose-built platforms.
Application-led engineering.
Explore configurable UAV systems and supporting equipment for imaging, inspection, training and specialized field applications.

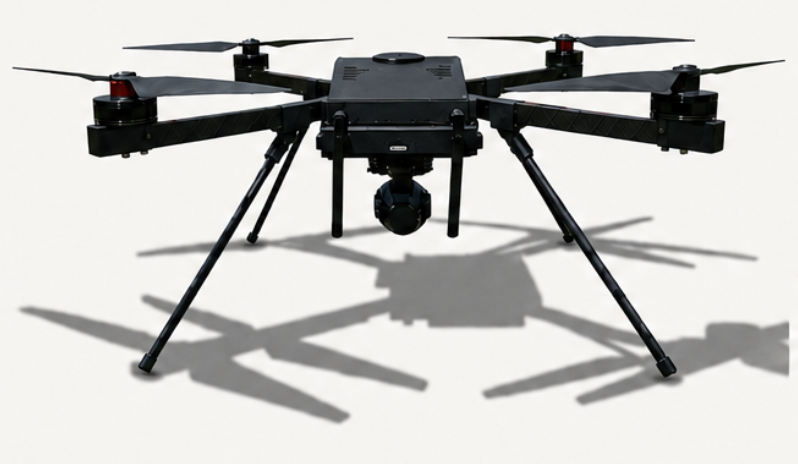

UAV / 01
DOOAF Drone
A precision aerial observation platform combining autonomous flight, real-time imaging and geographic positioning for field observation and situational awareness.
- System
- Autonomous Aerial Observation System
- Positioning
- Geographic coordinate display
- Imaging
- Real-time video
- Mapping
- Digital mapping capability

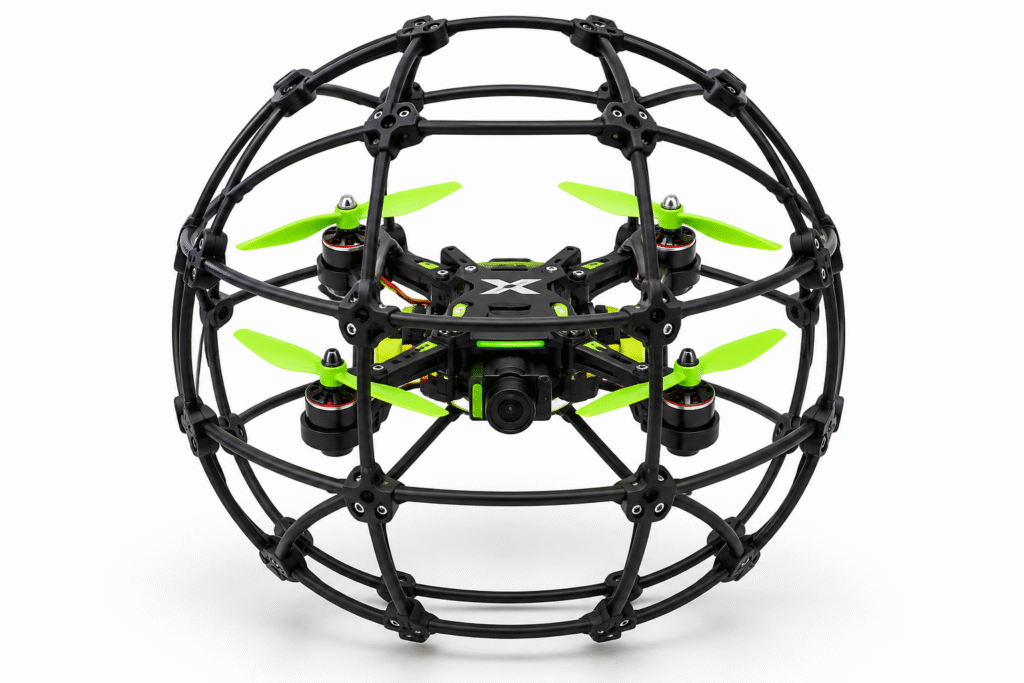

UAV / 02
Soccer Drone
A compact protected FPV drone for training, indoor flying, drone soccer, education and recreational applications.
- Frame
- 2.5-inch protected quadcopter
- Protection
- Full spherical protective cage
- Motors
- 4 × brushless motors
- Propellers
- 2.5-inch
- Flight controller
- Integrated stabilization system
- Battery
- High-performance LiPo
- Flight time
- Up to 8 min
- Control range
- Up to 1 km
- Maximum speed
- Up to 40 km/h
UAV / 03
Drone Soccer Goal System
A portable training goal for structured FPV practice, precision-flying exercises, competitions and education programs.
- Pass detection
- Automatic detection and counting
- Score display
- Real-time digital counter
- Customization
- Custom size, colour and branding
- Construction
- Portable, impact-resistant design
- Configuration
- Single or dual-goal options

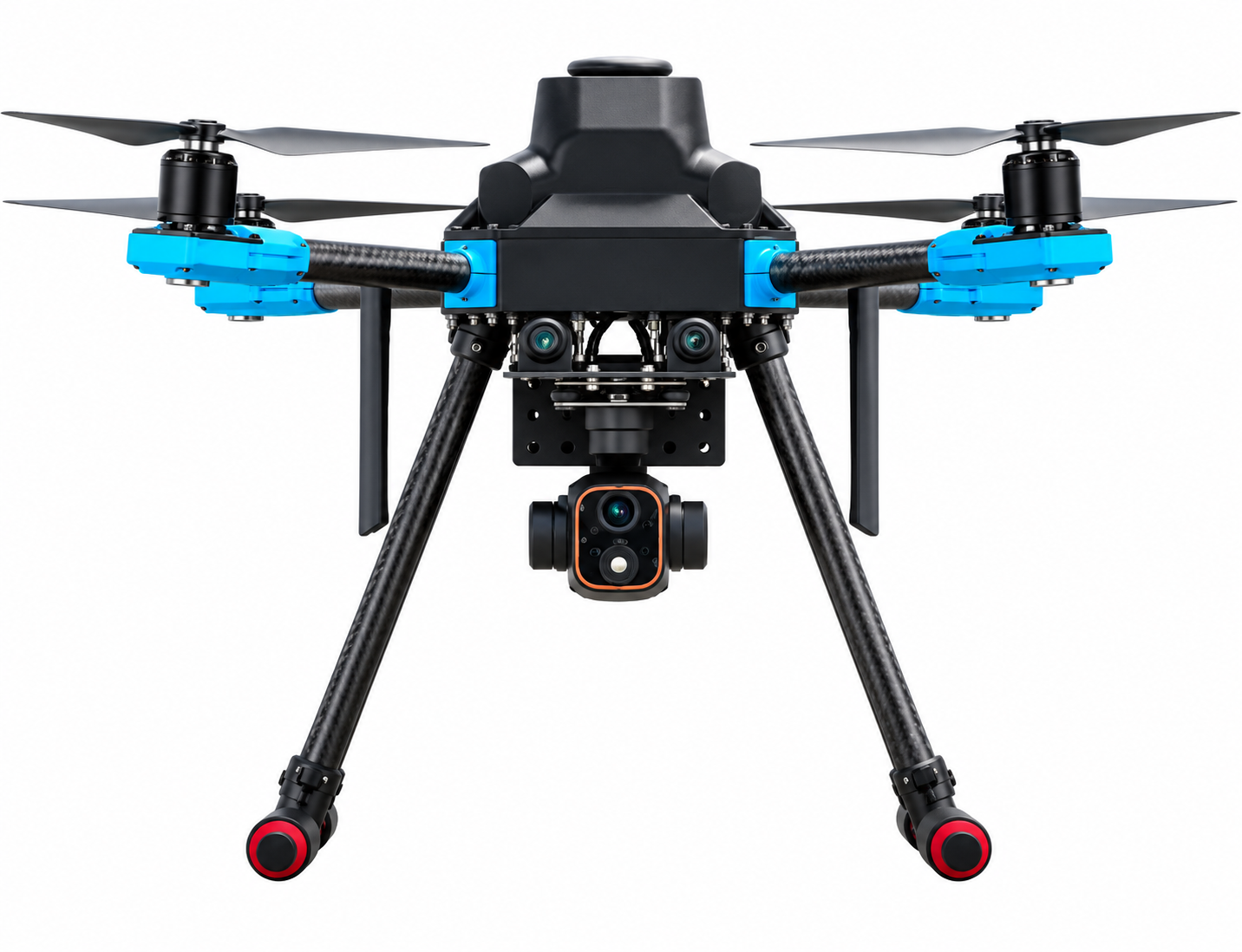

UAV / 04
Quadcopter UAV
A modular aerial platform for surveillance, infrastructure inspection, search and rescue, research, mapping and security applications.
- Configuration
- X-type quadcopter
- Motors
- 4 × 920 KV brushless motors
- Propellers
- 10-inch
- Frame
- Carbon fibre and composite
- Battery
- 6,000 mAh Li-ion
- Camera
- Digital + thermal
- Video resolution
- Up to 2K
- Flight time
- Up to 30 min
- Navigation
- GNSS-assisted
- Communication
- 2.4 GHz / 12 channels
- Telemetry
- Real-time data monitoring
- Flight modes
- Manual / Stabilized / Autonomous
UAV / 05
Flame-Thrower Drone System
A specialized heavy-lift aerial platform listed for vegetation management, controlled-burn research and designated industrial applications, subject to applicable approvals and operating requirements.
- Configuration
- 6-rotor hexacopter
- Wheelbase
- 1,290 mm
- Payload capacity
- Up to 5 kg
- Maximum takeoff weight
- 18 kg
- Propellers
- 24-inch folding
- Frame
- Carbon fibre composite
- Protection rating
- IP65
- Flight endurance
- 25–30 min*
- Maximum speed
- 20 m/s*
- Navigation
- Multi-GNSS positioning
- Telemetry
- Real-time flight data

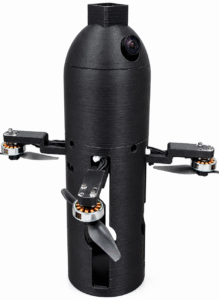

UAV / 06
Canister Drone System
A compact modular drone platform for specialized payload integration, remote inspection, research and controlled field operations.
- Design
- Compact multirotor
- Payload
- Enclosed modular payload housing
- Camera
- Integrated camera system
- Propulsion
- Brushless
- Construction
- Lightweight
- Control
- Remote-controlled operation
- Integration
- Modular payload integration
Specifications are indicative and subject to confirmation for the selected configuration. Specialized systems are offered subject to applicable laws, approvals and safe operating requirements.
Have a specific mission
in mind?
Tell us about your payload, endurance, operating environment and project objectives. Our team can discuss a suitable UAV configuration and integration approach for your requirements.
Discuss a Custom UAV ↗Define the application, operating environment and intended outcome.
Discuss airframe, imaging, endurance and integration requirements.
Review feasibility, configuration choices and next steps with our team.
Ready to find your
next UAV platform?
Contact SoFly Innovations to discuss pricing, available configurations and project requirements.
